Thinking of the monotribe as an analog synthesizer, the procedure of for updating the Operating System is also a very old-school, analog-style method, reminiscent of loading data via the playback of analog cassette tape.。
Simply download the system data which Korg has encoded as an audio (WAV) file.hen, play back the file using a WAV file player like a Smartphone or using PC application software, that’s connected directly in to the monotribe’s SYNC IN jack. When the audio (WAV) file finishes play back, your monotribe has been successfully updated. It’s a traditional procedure revived for a new generation!
WARNING!
Do not playback the system update file on any speaker or headphone system as this could lead to damage to the equipment and/or hearing loss. The system update file doesn’t contain audio that’s intended to be listened to. Neither Korg nor any of its affiliates will accept responsibility for any damages, personal loss or injury that may result from playback of the file.
As with drum parts, the synth part now provides timing information in between the steps of a sequence, allowing a pattern to achieve a total of 16 steps.
Volume Automation allows the synth volume to be recorded during playback to create more detailed sequences. The left side of the ribbon controller keyboard decreases the volume, and the right side increases it. This Volume Automation can even be controlled if Flux mode is on.
The Active Step function lets you specify which steps are played or jumped when the step sequencer is playing back. Now, the Active Step can be set individually for each of the SYNTH, BD, SD, and HH parts. By specifying a different number of steps for each part, you can create complex polyrhythms.
The S&H function is indispensable for creating mysterious analog synth sound effects. The RATE knob adjusts the frequency of change, and the INT. knob adjusts the depth of change.
“What is Sample & Hold?”
Unlike traditional LFO waveshapes that provide a constantly changing signal, the Sample & Hold feature takes a “sample” of the LFO signal and holds that level for a specific duration of time. The results are the highly popular and slightly random stepped-filter effects so famously used in analog synthesizers. By using noise as the input signal, the monotribe version 2 lets you create effects that change in a distinctively random manner.
A roll can now be added to the desired drum part. The speed of the roll can be controlled using the ribbon controller keyboard; moving toward the right will increase the number of strikes. You can also record the drum roll by using the sequencer to intuitively create subtle and dynamic drum patterns.

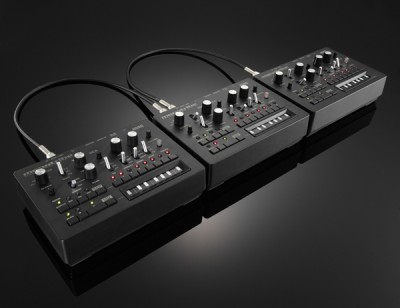

The Link Sequence feature is a sync method that vastly expands the scope of the monotribe, to deliver even more fun. When sequence playback reaches step 8, the sequence will automatically stop and the next monotribe unit will start playing. By loop-connecting the SYNC jacks, the playback can keep cycling through multiple units – in true modular fashion!
The Gate Time Hold function lets you use the ribbon controller keyboard to play and record new pitch information while retaining the gate times that are recorded in the sequencer. The Half Tempo function cuts the tempo in half when synchronizing to an external input from the SYNC IN jack. In addition, there are now four shortcut keys that instantly initialize various types of sequence data or active step settings.

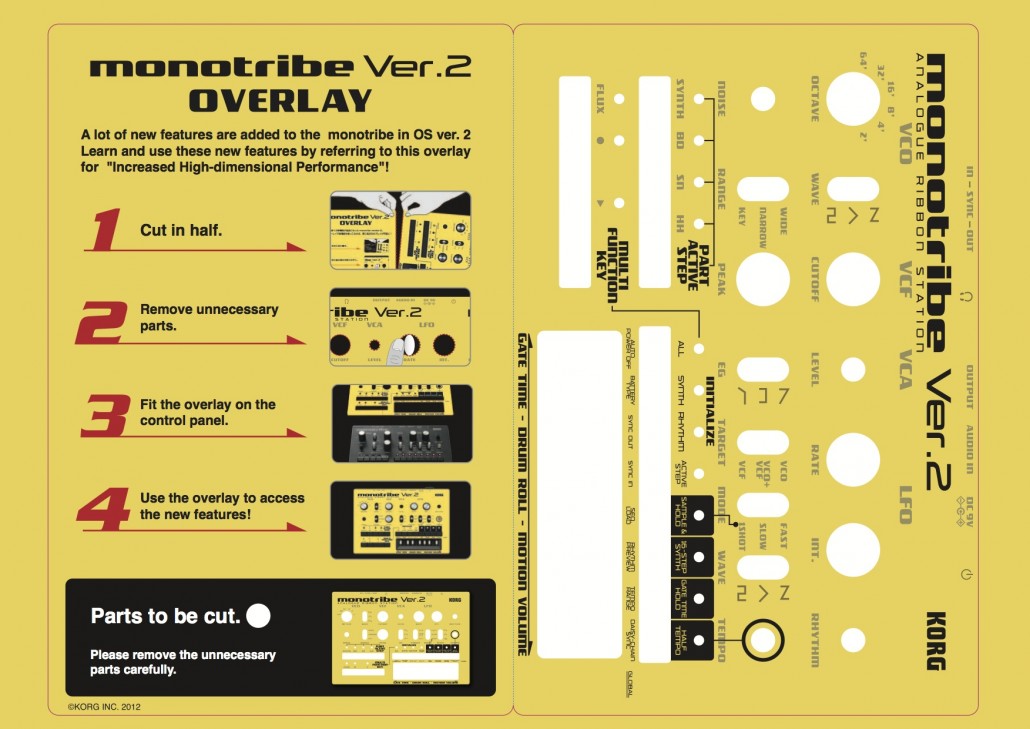

This download contains a printable overlay that maps out the new features found in the V2 upgrade for Monotribe. Simply print, cut, and lay it on top of your monotribe for instant reference of the new features.
Simply print, cut, and lay it on top of your monotribe for instant reference of the new features.
The monotribe’s sound engine uses technology old and new, merging the powerful sound of analog synthesis with the dexterity and playability required in today’s groove making environments. Analog technology is essential for fast and responsive control, delivering the full sonic spectrum from warm and easy going to full-throttle rampage.
The monotribe provides a three-part rhythm section powered by discrete analog circuitry; bass drum, snare, and hi-hat. These three sounds were the key elements in a generation of analog beat making, and are still in demand today. Use these powerful drum sounds to generate distinctive beats attainable only from the monotribe.
The ribbon controller keyboard provides three selectable playing modes/ranges. The chromatic mode (KEY) is ideal for playing melodies and bass lines, and stepping smoothly from note to note. Switch to the continuous mode (NARROW) for glides and bends – just as on the monotron. Also available is the wide continuous mode (WIDE) with a six-fold pitch range for dramatic synth zaps and screams. In addition, pressing the Gate Time button will allow the gate time to be sequenced as the ribbon controller keyboard is played.
The Gate Time Hold function lets you use the ribbon controller keyboard to play and record new pitch information while retaining the gate times that are recorded in the sequencer.
Analog synthesizers of yesteryear were prone to drift in pitch. But no more! The monotribe’s self-tuning circuitry provides stable chromatic playability, and will not go out of tune. This self-tuning technology also means no warm-up time, no servicing for pitch calibration, and no sensitivity to temperature changes – just the great sound of an analog VCO.
The Sync In jack allows the monotribe to be controlled via the keyboard of a KORG KingKORG, or other analog devices that have a CV/Gate Output jack.

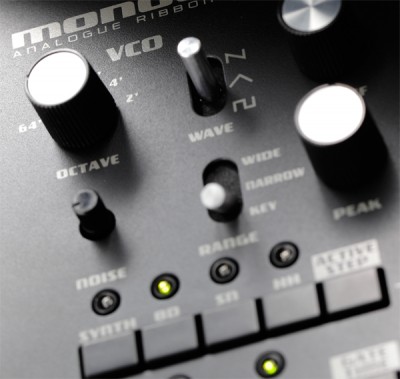

The VCO offers a choice between sawtooth, triangle and square waves. White noise can be mixed into the oscillator signal in any amount desired. The Octave selector covers a broad range, from deep bass to piercing lead-lines.
Three EG (Envelope Generator) presets provide the VCA with impressive versatility and dexterity. The LFO can be patched to the VCO and/or the VCF, creating impressive dynamic effects. The Range switch allows the LFO to deliver stirring cyclic changes over tens of seconds (SLOW) or superfast (FAST) audio-range FM ringing. Switching the LFO Mode to the 1-shot setting allows the LFO behave as a second envelope generator – a truly powerful addition!
The monotribe features the same VCF circuit that can be found on Korg’s classic MS-10 and MS-20 analog semi-patchable synthesizers. Distinctively analog, this sharp and powerful filter adds dramatic change to the sound, imparting the uniquely memorable character of Korg’s early analog synthesizers. Using the audio input, any audio source can be enhanced by passing through the filter section. Process an instrument, a voice, or a complete mix from CD or MP3 and create larger than life filter effects!
For over a decade, Korg’s Electribe Series has served as the standard tools for dance music and DJ work, and it has earned outstanding popularity, even appearing recently as a top selling iPad app.
he fantastic step key interface lives on in the monotribe, with a dedicated button for each of the eight steps. This allows real time, hands-on step editing of the drum parts and also for any synth part sequence played on the ribbon keyboard.
Active Step editing lets you remove or re-insert individual steps, creating short loop-like effects or off-beat patterns that weave in and out of complex rhythms.
The step buttons provide this Active Step control during playback, and also provide an instant return to the original 8-step sequence if needed. Flux Mode allows the creation of sequenced synth parts that are not rigidly tied to the step grid, providing more musical versatility. The creation and morphing of edgy beats and stuttering rhythms have never been easier.
The monotribe provides both Sync In and Sync Out jacks, empowering multiple monotribe units to play and work together for a synchronized performance. Not just other monotribes either. Audio line level pulses can trigger the Sync Input so that the monotribe can be synchronized to a DAW system, for example. In addition, the polarity of the pulse waveform can be changed for both the input and output, so you can enjoy synchronized performances with a variety of equipment with Sync connections.
Light, compact, and portable, the monotribe is great on the go. Equipped with a built-in speaker and powered by six AA batteries, it is completely self-contained and ready to deliver hours of enjoyment wherever you take it.
