Keyboard

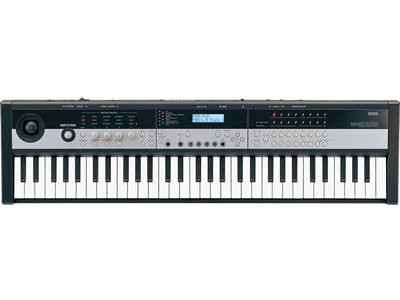

61-key Natural Touch mini-keyboard
(velocity sensitive; aftertouch not supported)
System
- Sound Engine
- EDS-i (Enhanced Definition Synthesis – integrated)
- Modes
- Combination, Program, Sequencer, Global/Media
Sound Engine
- Maximum Polyphony
- 120 voices max, single mode, 60 voices max, double mode
* The actual maximum polyphony will vary depending on oscillator settings such as stereo samples and velocity crossfading.
- Preset PCM
- 49 MB (when calculated as 16-bit linear data)
,
360 multisamples, 484drum samples (including 24 stereo)
- Programs
- Oscillators:
- OSC1 (Single), OSC1+2 (Double): Stereo multisamples are supported, 4 velocity zones per oscillator, with switching, crossfades and layers.
- Filters:
- Four types of filter routing (single, serial, parallel, 24 dB), Two multi-mode filters per voice (low pass, high pass, band pass, band reject)
- Modulation:
- For each voice, two envelope generators (Filter & Amp), two LFOs, two key tracking generators (Filter & Amp), and two AMS mixers, In addition, pitch EG, common LFO, and two common key tracking generators
- Combinations
- Number of Timbers:
- 16 Timbres, Up to sixteen timbres, keyboard and velocity split/layer/crossfade, and modifications to the program setting via the Tone Adjust function
- Master Keyboards:
- It can be used as an external MIDI device.
- Drum Kits:
- Stereo and mono drumsamples, 4-way velocity switches with crossfades and adjustable
crossfade shapes (Linear, Power, Layer).
- Numbers
- Combinations:
Programs:
Combinations:
GM Sound set: - 384 Combinations / 256 Preloaded,
512 Programs / 480 Preloaded,
48 Drum Kits / 25 Preloaded,
256 GM2 Programs + 9 GM2 Drum Programs
Effects
- Insert Effects:
- 5 In-line processing; stereo in – stereo out
- Master Effects:
- 2 effects sends; stereo in – stereo out
- Total Effect
- 1 effect send; stereo in – stereo out
- Effects types:
- 134 types (Usable as insert, master, or total effect, however, double-size effects cannot be used as the Total Effect.)
- Modulation:
- Dynamic modulation, tempo sync delay, LFO
- Effects Control Bus:
- Stereo side-chaining for limiter, gates, vocoders, etc.
Dual Polyphonic Arpeggiators
- Program mode:
- 1 arpeggiator available
- Combination and Sequencer modes:
- 2 arpeggiators available
- Arpeggio Patterns:
- 5 preset; 640 user arpeggio patterns (512 preload)
Sequencer
- Tracks:
- 16 MIDI Tracks & 1 Master Track
- Songs:
- 128 Songs
- Resolution:
- 480 ppq (parts per quarter-note)
- Tempo:
- 40.00–300.00 bpm (1/100 bpm resolution)
- Memory:
- Up to 210,000 MIDI events
- Grid Sequence:
- Allows creation of sequence loops for drums etc., with up to 64 grids per note
- Template songs:
- 16 preset/16 user template songs
- Format:
- KORG (microSTATION) format, SMF (formats 0 and 1) supported
- Demo songs:
- 3 songs
Global/Media
- Global:
- Master tune, Transpose, MIDI settings
- Media
- Load, Save, Utility
Controllers
- Controllers:
- Joystick
- Real-titime Controls:
- Knobs 1–4 SELECT buttons (Real-time Control, Arpeggiator Control, Tempo Control)
- External:
- In External mode, the four knobs, four chord trigger switches can be used as MIDI controllers. 128 setups can be stored. (102 are preloaded. These allow you to control software synthesizers or DAW software.)
- Arpeggiator/Audition:
- AUDITION button, ARP ON/OFF button, ARP LATCH ON/OFF button
User Interface
- Display:
- 16 character x 2 line LCD (with backlight)
- Mode/Category:
- Buttons=COMBI, PROG SEQ, GLOBAL, MEDIA, CATEGORY SELECT, CATEGORY, Indicator
- Value Controllers:
- Cursor/value buttons, function 01–16 buttons (0–9, -, ., ENTER, GROUP DOWN, GROUP UP), COMPARE, WRITE
- Sequencer:
- Buttons=LOCATE, REC, START/STOP, REW, FF, PAUSE, LOOP, KEY, GRID, SEQ, PLAY/MUTE, Function 01–16
- Other:
- VOLUME knob, display contrast
Audio Outputs
- OUTPUT L/MONO, R:
- 6.3 mm monaural phone jack (unbalanced)
- Headphone output:
- 3.5 mm stereo mini-phone jack
- Control Inputs:
- DAMPER/PEDAL/SW jack x 1, half-damper supported
Others
- MIDI:
- IN, OUT
- USB:
- 1 USB (TYPE B), MIDI interface
- SD-Card slot:
- Capacity recognized: FAT32: 2 Gigabytes (GB). SDHC memory cards are not supported.
- Power:
- AC adapter power supply connector (DC 9V 1700mA), POWER On/Off switch
- Dimensions:
(H x W x D) - 778 x 210 x 82 mm / 30.63” x 8.27” x 3.23”
- Weight:
- 2.6kg / 5.73lbs
- Power Consumption:
- 6 W
- Accessories:
- AC adapter, Easy start guide, Accessory disc (microSTATION Parameter Guide (PDF),
Owner’s Manual (PDF), Installation Guide (PDF), External Setups (PDF), KORG USB-MIDI driver, microSTATION Editor/Plug-In Editor etc.
- Options:
- XVP-10 Expression/Volume Pedal
EXP-2 Foot Controller
DS-1H Damper Pedal
PS-1 Pedal Switch
| * All product, company, and standard names are trademarks or registered trademarks of their respective holders.
* Appearance and specifications of products are subject to change without notice. |
System Requirement for microSTATION, microSTATION Plug-In Editor
Windows
- Supported Computer:
- CPU
- Intel Pentium Ⅲ/ 1GHz or later
Pentium D, Core Duo or later recommended
- Memory
- More than 512 MB (1 GB Recommended)
- Monitor
- 1,024 x 768, more than 16 bit
- Other
- Microsoft Windows XP/ Vista/ 7 With USB ports support
- OS:
- Microsoft Windows XP Home/Professional Edition SP3
Windows Vista SP2*
Windows 7*
*64-bit edition requires Stand Alone version.
Mac OS
- Supported Computer:
- CPU
- Apple G4 800MHz or later (Supported Intel Mac)
G5 or Core Duo recommended
- Memory
- More than 512 MB (1 GB Recommended)
- Monitor
- 1,024 x 768, more than 32,000 colors
- Other
- Apple Macintosh that satisfies the operating requirements of Mac OS X and is equipped a USB port
- OS:
- Mac OS X 10.4.11 or later
Format Requirements for the microSTATION Plug-In Editor
- Windows:
- VST, RTAS
- Mac OS:
- VST, Audio Unit, RTAS
| *The microSTATION Plug-In Editor needs to have met the operating requirements of the host application for optimum performance. | |
| *You can’t open the microSTATION Editor and microSTATION Plug-In Editor at the same time. *You can’t edit two the microSTATIONs at the same time. |
